Pactron’s FX3 FPGA Dev Board



Pactron’s FX3 FPGA Dev board a Development kit for Cypress’s FX3 device has the next-generation Super Speed USB 3.0 peripheral controller at its heart. This powerful & compact development board is designed to interface with standard FPGA boards that have FMC or HSMC interfaces. The I/O voltage of the GPIF-II interface can be set to 1.8V, 2.5V or 3.3V using hardware configuration. In addition to taking the GPIF-II signals, the 120- pin expansion connector is also connected to I2C, I2S, Control Signals and power rails (+1.2V, +3.3V, +5.0V).

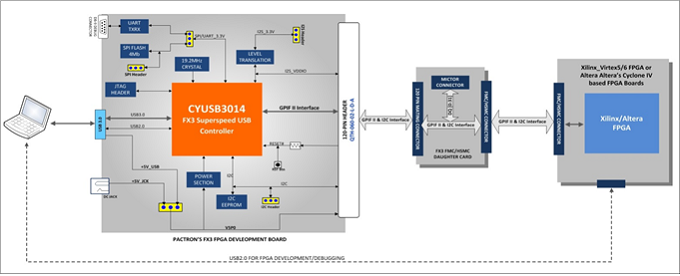

FX3-FPGA Board - Application Block Diagram







Features

  • USB 2.0/USB 3.0 Connector Interface
  • DC Jack for External Power Supply
  • SPI Flash
  • I2C EEPROM
  • I2S Header for Audio Codec Interface
  • I2C Header
  • UART Debug Port



Hardware Configuration

  • Boot Mode Selection – SPI Flash/I2C/SPI
  • GPIF-II I/O Voltage Selection – 1.8V/2.5V/3.3V
  • Ref Clock Selection - 19.2 MHz Crystal/External C





FX3 FMC Daughter board

This daughter card plugs into the 120-pin Interface connector of the FX3-FPGA Dev kit and takes the signals to an FMC connector that can plug into any standard Xilinx FPGA with an FMC interface. The GPIF-II signals are also taken to a Mictor connector on the adapter board which provides access to logic analyzers.









HSMC Daughter board

This daughter card plugs into the 120-pin Interface connector of the FX3-FPGA Dev kit and takes the signals signals to an HSMC connector that can plug plug into any standard Altera FPGA board with an HSMC interface. The GPIF-II signals are also taken to a Mictor connector on the adapter board which provides access to logic analyzers.









For further details, please contact systemsolutions@pactroninc.com
