Marvell ARM based Embedded System



OpenRD Tasman

The OpenRD Tasman System is a development/evaluation platform based on the high performance Marvellís Kirkwood Series TM 88F6281 ARMv5TE compliant core with integrated 16 KB L1 Cache and 256 KB L2 cache that can run up to 1.2GHz. The system enables users to design and develop innovative embedded products based on the Marvellís 88F6281 microcontroller. The system has 512 MB (128 MB x 4) DDR2 RAM and 512 MB NAND Flash.

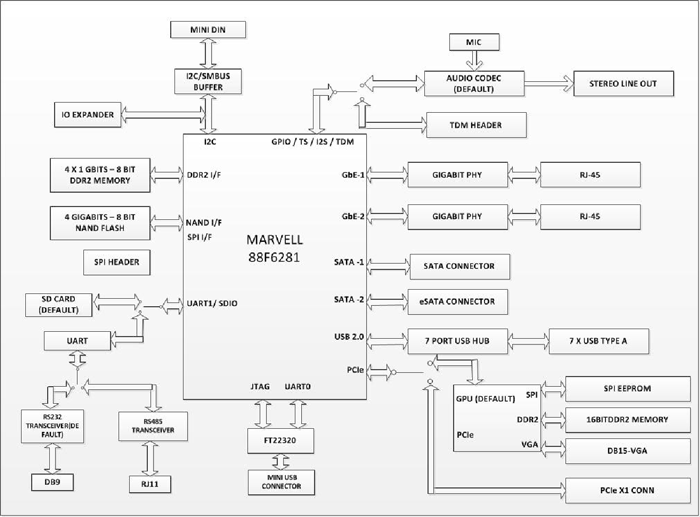

Figure 1: Functional Block Diagram

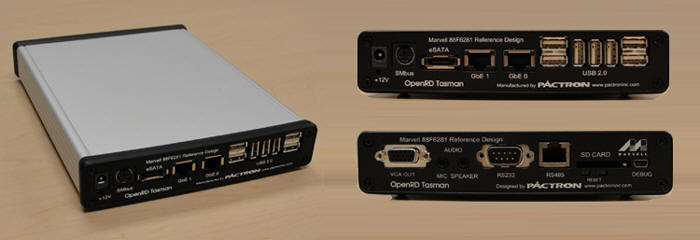

Figure 2: OpenRD Tasman System / Front Panel / Back Panel



Features:

The system supports the following features:

  • U-Boot 1.1.4 Marvell version: 3.4.19 as the Boot loader
  • Linux-2.6.33-rc8 ARM Linux Kernel
  • Debian Lenny stable version 5.0 files system
  • 16 bit 800 MHz DDR2 SDRAM
  • 8-bit 512 MB NAND flash boot support
  • Two Gigabit Ethernet (10/100/1000 Mbps) ports
  • eSATA 3 Gbps data rate
  • SATA 2.5Ē Hard Drive Interface 3 Gbps Data Rate
  • VGA or PCIe x1 Interface
  • Seven USB 2.0 Ports
  • Speaker/MIC Interface
  • 4-bit SD Card Interface
  • TDM/TS Interface
  • JTAG/UART0 Interface using Mini USB
  • RS232/RS485 for UART1
  • SMBUS Interface





Applications:

  • Network Attached Storage (NAS)
  • Thin Client
  • Access Point
  • Point of Sale (PoS)
  • Industrial controller
  • Wireless
  • Routers

Part Number and Pricing:

OpenRD Tasman Part Number: Tasman-6281M-01

Please e-mail us at info@pactroninc.com for pricing & delivery



How to place an order:

Please send an e-mail to openrd@pactroninc.com with the following information:

  • Full Name
  • Shipping Address
  • Number of OpenRD Tasman Units
  • Purchase Order or Credit Card Information

Contact Us:

For any technical support please e-mail us at openrdsupport@pactroninc.com
